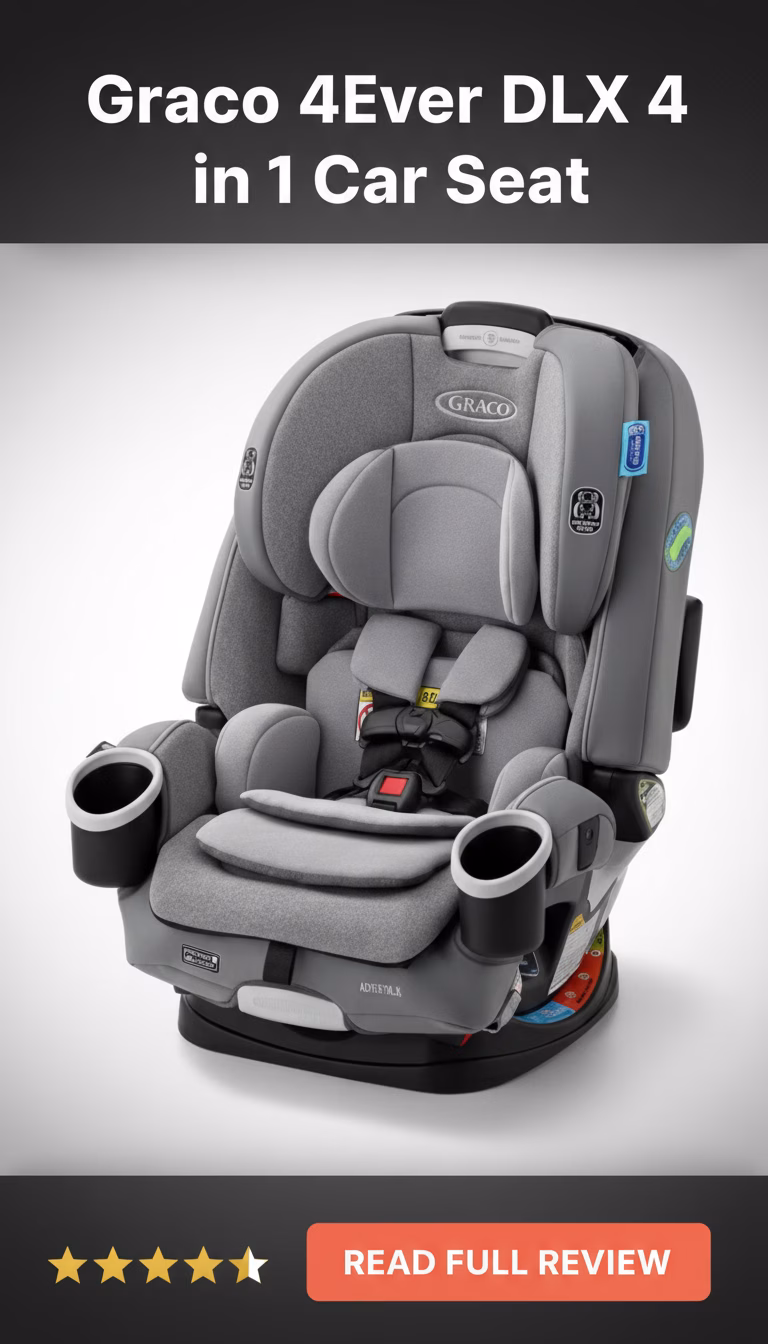

Graco 4Ever DLX — One Car Seat from Birth to Booster, and What That Actually Means

The Graco 4Ever DLX covers four stages: rear-facing infant seat (4-40 lbs), forward-facing harness seat (22-65 lbs), highback booster (40-100 lbs), and backless booster (40-120 lbs). At roughly $330, the pitch is that you buy one seat and use it for approximately 10 years instead of purchasing three separate seats. The math works if the seat survives that long and your child progresses through all four stages in the same vehicle.

Stage-by-Stage Breakdown

Rear-facing (4-40 lbs): The seat accommodates newborns with the included infant insert, though most parents of newborns prefer a detachable infant carrier for the convenience of moving a sleeping baby without unbuckling. The 4Ever DLX doesn''t detach — it''s permanently installed. Rear-facing extends to 40 lbs, which covers most children through age 3-4. The recline adjustment offers multiple positions for rear-facing, important for both infant head support and fitting in tighter back seats.

Forward-facing with harness (22-65 lbs): This is where most families will spend the longest stretch — roughly ages 2-5 depending on the child''s size. The 5-point harness adjusts without rethreading (a genuine time-saver during growth spurts), and the harness height accommodates children up to 49 inches tall. The InRight LATCH system makes installation straightforward — push the connectors into the vehicle''s LATCH anchors until they click, then tighten the strap.

Highback booster (40-100 lbs): Remove the harness, switch to the vehicle''s seatbelt. The headrest adjusts through 10 positions to keep the seatbelt routed correctly across the shoulder as the child grows. This stage typically covers ages 4-10.

Backless booster (40-120 lbs): The back portion detaches entirely, leaving a booster cushion that raises the child high enough for proper seatbelt positioning. This final stage bridges the gap until the child can ride with just the vehicle belt (typically around 4''9" tall, ages 8-12).

Installation Reality

The seat weighs approximately 22 lbs empty — heavy enough that moving it between vehicles regularly is impractical. The InRight LATCH system genuinely simplifies installation compared to threading seatbelts through designated paths. The manual is detailed but long (100+ pages). The most common installation mistake: not pulling the LATCH strap tight enough. The seat should move less than 1 inch side-to-side at the belt path when properly installed.

In smaller vehicles (Honda Civic, Toyota Corolla class), the rear-facing configuration consumes significant front-passenger legroom. Someone over 5''10" may struggle to sit comfortably in front of a rear-facing 4Ever DLX. In mid-size SUVs and three-row vehicles, space is adequate. Three-across configurations in sedans with the 4Ever DLX are nearly impossible — the seat is 19.5 inches wide at the widest point.

Comfort and Practical Features

The DLX designation adds a few upgrades over the base 4Ever: a 6-position recline (vs. 4), the rapid-remove machine-washable cover, and slightly upgraded padding. The rapid-remove cover is the standout feature — it pulls off without removing the harness or uninstalling the seat. This matters more than it sounds: standard car seat covers require partial disassembly to remove, which means most parents never wash them despite the accumulation of crumbs, milk, and general child mess.

The harness holders keep the straps out of the way during loading — small detail, significant convenience improvement. Two integrated cup holders accommodate sippy cups or snack containers.

What to Know Before Buying

Car seats expire. The 4Ever DLX has a 10-year expiration from manufacture date, which theoretically covers the full four-stage lifespan. However, if you plan to use it for a second child, the timeline tightens. A seat manufactured in 2026 expires in 2036 — enough for one child''s full progression, but a second child starting in 2030 would only have 6 years of remaining life.

The "4-in-1" promise assumes your child fits neatly into all four stage ranges. Some children outgrow the height limits before the weight limits (or vice versa). Tall, thin children may age out of the forward-facing harness by height before reaching the maximum weight, which is normal and just means transitioning to the booster stage earlier.

At $330, the 4Ever DLX costs less than buying an infant seat ($150-200), a convertible seat ($150-250), and a booster ($50-100) separately. The value proposition is real if your family situation supports using one seat through the full lifecycle. For families with multiple children close in age who''ll need the seat back for a younger sibling, buying dedicated stage-specific seats often makes more practical sense.
